Plastic Laminates
Product Details:
Product Description

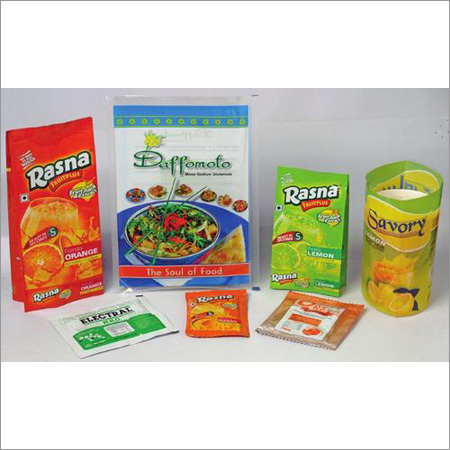

Plastic Laminates
Confidence in Plastic Laminates:
Flexible packaging, Miniature Packs, Carry Home Packs - these have been the buzzwords in today's competitive market scenario. More and more companies have been opting for flexible packaging these days in order to reach a wider horizon of customers. These laminates not only improve shelf life of the material, but also maintain aroma, impart better look to the pack as well as make it economical.
Any flexible packaging material - in the technical understanding - is known by the number of layers and combination of material which has been used in. Different materials are combined to have the advantage of properties of those materials. E.g. LDPE is generally used for its sealing properties, Aluminum/Nylon may be used for barrier properties, Polyester may be used for better surface printing properties, etc.
Special Features (Production Capacity):
The laminator has production capacity of 10 million square meters per month at operational speed of 250 meters/minute for Tube laminates or 450 meters /minute for other laminates. The Extrusion capacity of 1100 kgs/ hour output on 2 extrusion stations (550 Kgs x 2).
High Performance Laminates:
Multi-layer Capability
Two extrusion stations each having two extruders in tandem with provision to add third extruder. Each extruder is equipped with two gravimetric dosing units for various polymers. Hence, the machine can extrude 3 layers of different polymers at each station i.e. total 6 layers of polymer can be added in laminate.
This facilitates production of high performance laminates.
The gravimetric dosing units (2 x 4 = 8) give flexibility to blend material in precise quantity and ratio. The materials which can be extruded are PE, PP, EAA, EVA, NYLON, BYNEL, EVOH, SURLYN
MAXIMUM WIDTH 1350 MM
MINIMUM WIDTH 500 MM
Online Corona-flame Treatment:
- Enables excellent inter layer bond strength.
- Improves printability.
Versatility:
The machine can handle wide range of materials including paper / plastics / aluminum foil etc.
Range of Laminate Specification:
| Substrates | PE/OPP/PET/PVC/Cellophane Aluminum foil/ |
| PP Woven Fabric / Non Woven Fabric / Cloth/Paper/Board | |
| Thickness | Tube Laminates : 120 micron to 380 micron |
| Other Packaging : 40 micron and above | |
| Printing | Up to 9 color with excellent super glossy half tones. (protected by UV cured printed surface) |
| Width of roll | Up to 1350 mm |
| Core sizes | 76 mm (3'ÂÂ) and 152 mm (6'ÂÂ) paper/plastic/aluminum cores. |
| Roll Weight | Up to 2000 kg |
Special Laminates:
- SRMTL is developing specialized foil based structure to replace conventional 3/4 ply structures for better barrier properties and shelf life by use of specific polymers. These are high performance laminates.
- SRMTL has developed specific pharma laminates with high performance characteristics.
- SRMTL has developed low cost ABL/PBL laminates.
- SRMTL has developed specialized laminate for oil packing.
- Range of available tube & Flexible Laminate manufactured by SRMTL.
Tube Laminate:
Laminate Structure Thickness in Micron | Colour | Barrier | Usage |
| 200/9 | White / Clear | Aluminum Foil | Oral Care |
| 200/12 | White / Clear | Aluminum Foil | Oral Care |
| 220/12 | White / Clear | Aluminum Foil | Oral Care |
| 250/12 | White / Clear | Aluminum Foil | Oral Care / Cosmetics / Shaving Cream |
| 275/12 | White / Clear | Aluminum Foil + Nylon | Aggressive Creams / Pharma Products |
| 275/20 | White / Clear | Aluminum Foil | Antiseptic Creams / Oral Care |
| 280/12 | White / Clear | Aluminum Foil | Mosquito Replant Creams |
| 275/15 | Opaque - White / Clear | EVOH | Creams / Hair Styling gel to give better aesthetic looks |
| 310/15 | Opaque - White / Clear | EVOH | Creams / Hair Styling gel to give better aesthetic looks. |
- ABL - Aluminum Based Laminates
- PBL - Plastic Based Laminates
- Quantity in 20' container would 50,000 Square Meters.
- Laminate is normally packed on Pallets.
Flexible Laminate:
| Laminate Structure | GSM | Used for |
| Paper- Foil - Poly | 65 GSM to 160 GSM | Pharma + Food |
| Paper - Poly | 65 GSM to 160 GSM | Pharma + Food |
| PET - Poly - Foil | 65 GSM to 160 GSM | Pharma + Food |
|
|
|
 |
